EDGE O TECH | Ophthalmic Surgery Chair

Description

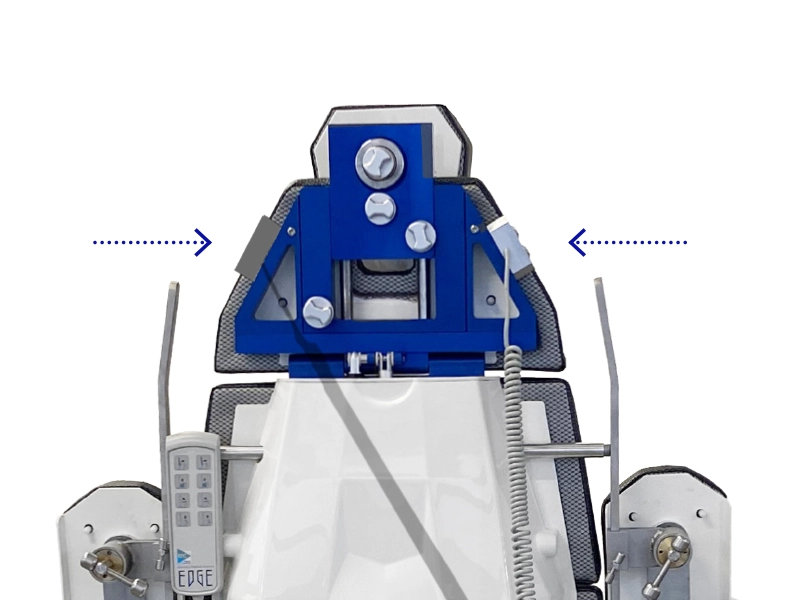

EDGE O TECH is equipped with a section with an electric headrest. The whole mechanism allows any necessary micro-adjustments for the positioning of the patient’s head.
EDGE O TECH is equipped with 4 wheels run by an electronic brake system. The ergonomics and safety of the wheel locking system improves the positioning and moving of the Chair. EDGE O TECH is conceived with a solid metal structure, whose mobile base is equipped with 4 medical grade wheels run by an electronic brake system. The Chair is operated by 3 linear actuators and a lifting column by means of the multifunction and wire-less foot control. The upholstery includes 5 fully removable padded sections for easy cleaning and disinfection, made of non-deformable high-density foam and with a bi-elastic, abrasion-resistant, fire-retardant and antimicrobial skai coating, available in 80 different colors and 8 different textures of fabric. The whole structure is covered with an innovative and modern design ABS casing. All surfaces allow easy cleaning and disinfection.

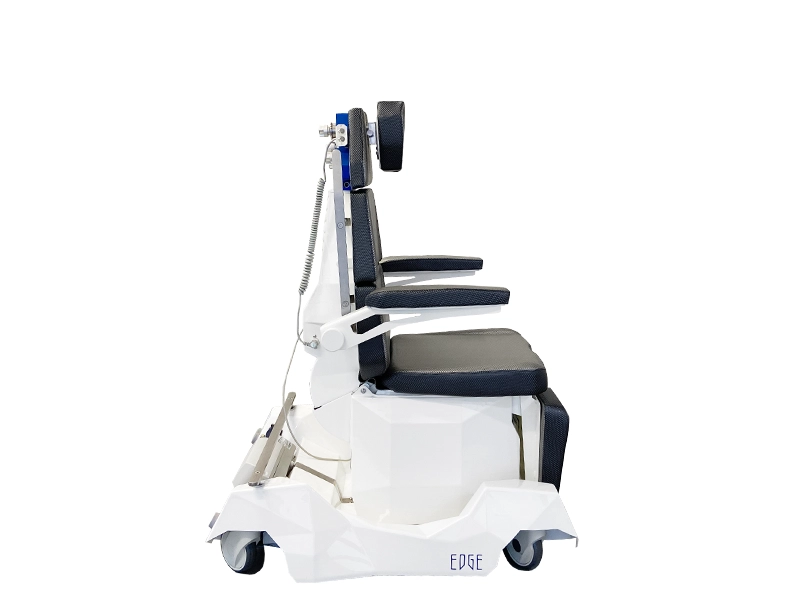

	EDGE O TECH chair reaches a minimum height of 52 cm allowing patients with different medical conditions to easily access the chair from the front or the sides without any barrier.
	EDGE O TECH an automatically reach the Operating Position thanks to the memorizable positions function activated by the foot control.
	EDGE O TECH is equipped with a solid metal structure, whose mobile base is equipped with 4 medical grade wheels run by an electronic brake system, in order to provide maximum maneuverability.
	EDGE O TECH chair can reach a perfect flat position at any height, for the maximum comfort of the Operator while performing a clinical examination or professional treatment. Maximum height 92 cm.
	Zero position of the chair. EDGE O TECH chair automatically reaches “0” position to facilitate the access and the exit of the Patient.
	EDGE O TECH allows the operator to perform “Synchro” movements of the Chair enables the combined and synchronized movement of the back-rest and leg-rest.
	EDGE O TECH can rely on a lifting capacity of 325 kg, one of the highest in its category.

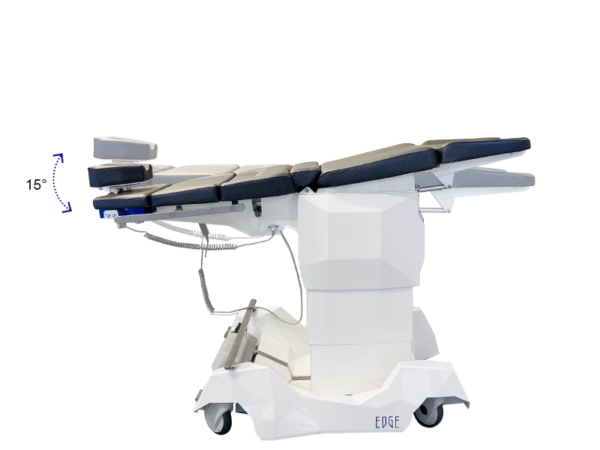

	EDGE O TECH reaches Trendelenburg position with 15° inclination.

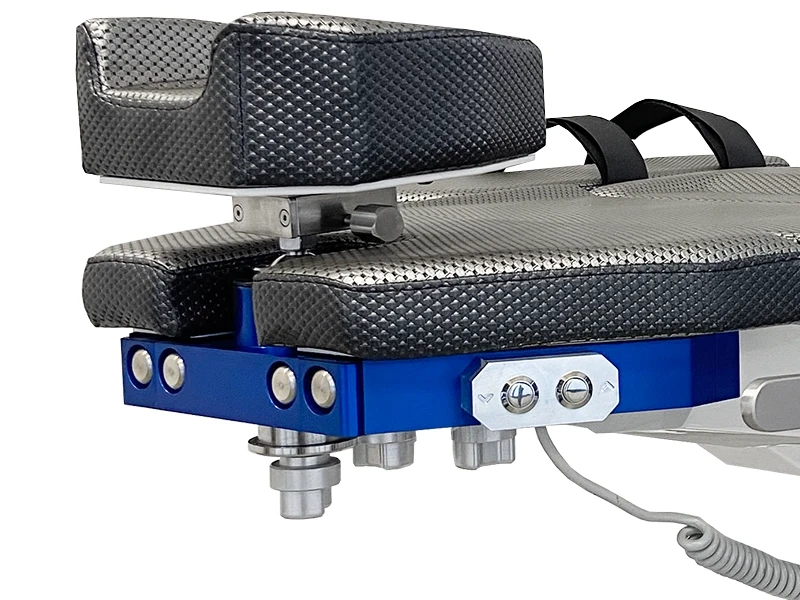

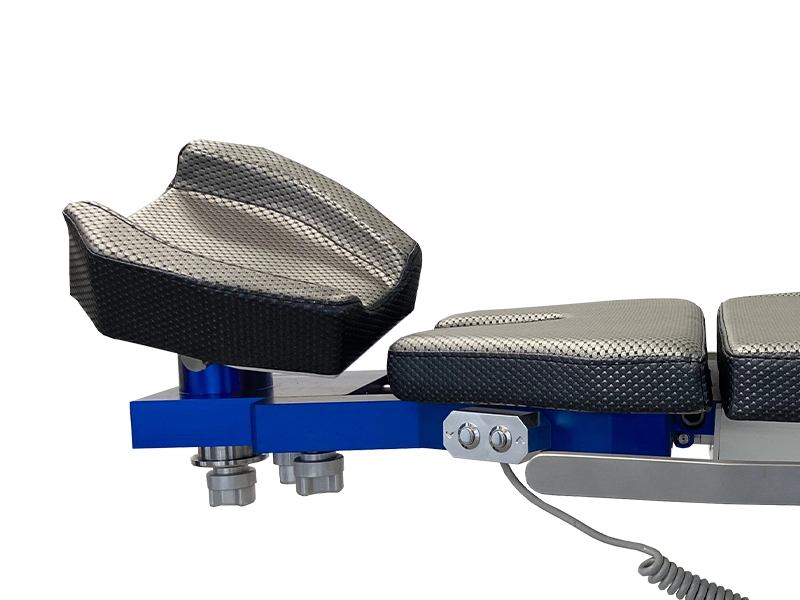

	The upper section of the backrest is made up of anodized aluminum elements to ensure maximum stability and lightness. The section is motorized via a linear actuator and stabilized by a gas spring kept under tension. The headrest is shaped and padded according to the needs of different medical sectors and can be completely removed if necessary. The headrest is 3-way adjustable and can be safely locked when the correct position is achieved. PROVIDED IN THE STANDARD VERSION

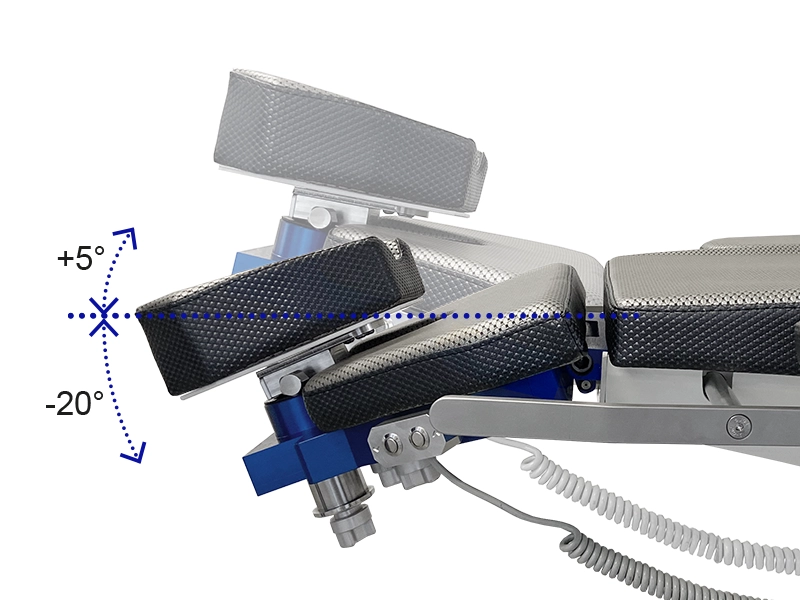

	The headrest section can be adjusted from -20° to +5° by means of a 2-button stainless steel control panel.
	Magnetic Aluminium Control Panel with two buttons up/down
	The control panel can be fixed on both sides of the section and hung with a quick magnetic coupling. PROVIDED IN THE STANDARD VERSION

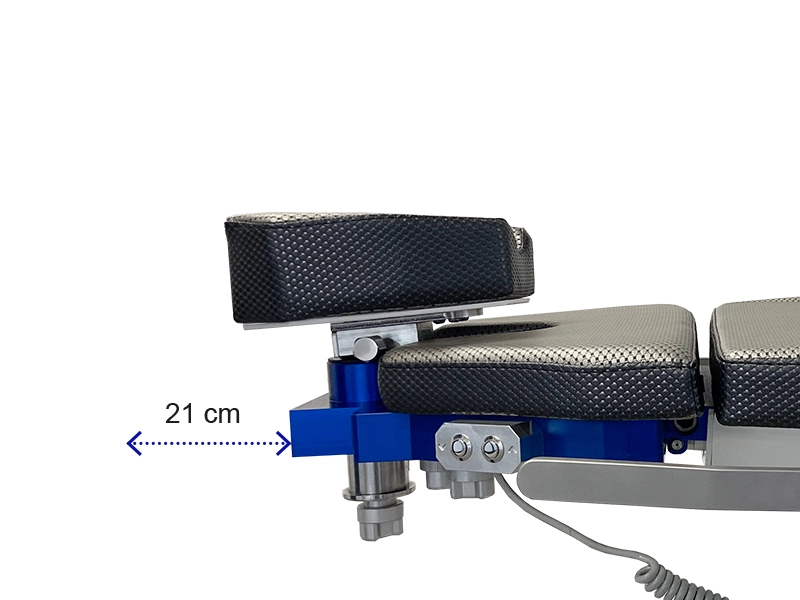

	The headrest section can be extended telescopically in order to fit different patient heights. PROVIDED IN THE STANDARD VERSION

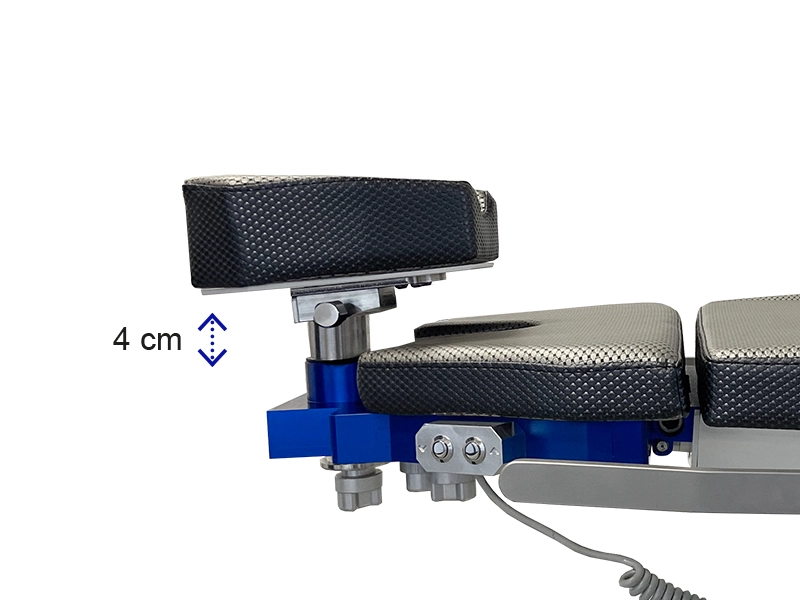

	The headrest can be height-adjustable and can be locked in the desired position by means of its special clamping system. PROVIDED IN THE STANDARD VERSION

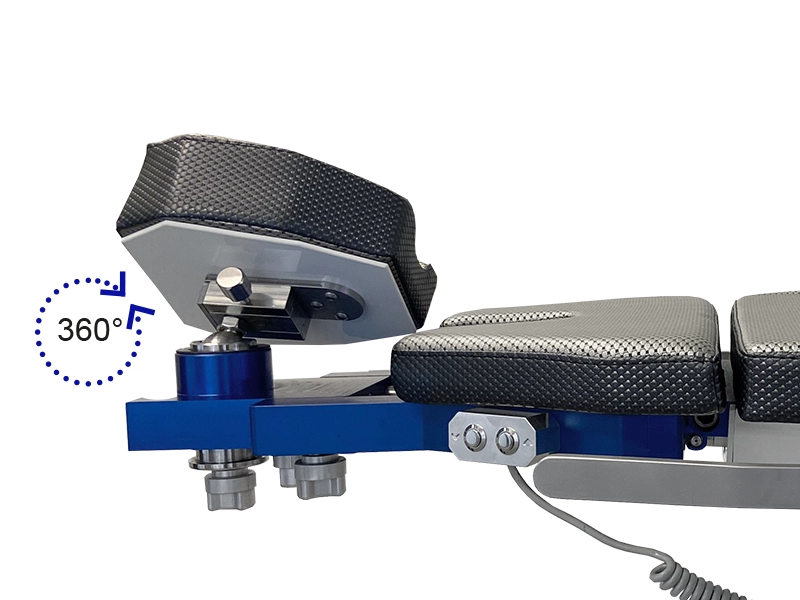

	The headrest can rotate 360° on a ball joint in order to achieve the most suitable position for the patient’s treatment. PROVIDED IN THE STANDARD VERSION

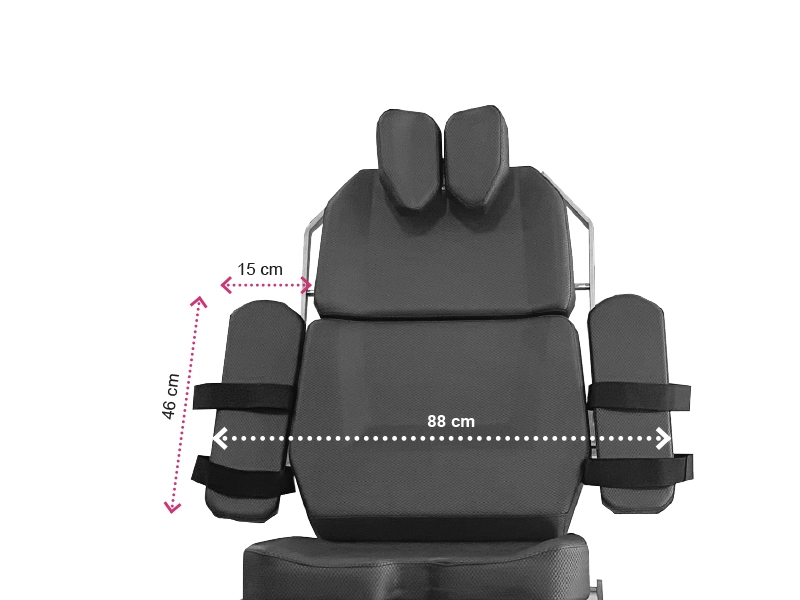

	Arm-rest is shaped and padded according to the requirements of different medical sectors and can all be completely removed when necessary. PROVIDED IN THE STANDARD VERSION
	Both padded arm-rest are independently collapsable, removable and mechanically combined with the seat\backrest movements ensuring comfort for the patient in any position.
	Padded and shaped leg-rest. PROVIDED IN THE STANDARD VERSION
	Stainless steel retractable foot-rest with a load capacity of 80Kg provides maximum comfort to the Patient. PROVIDED IN THE STANDARD VERSION

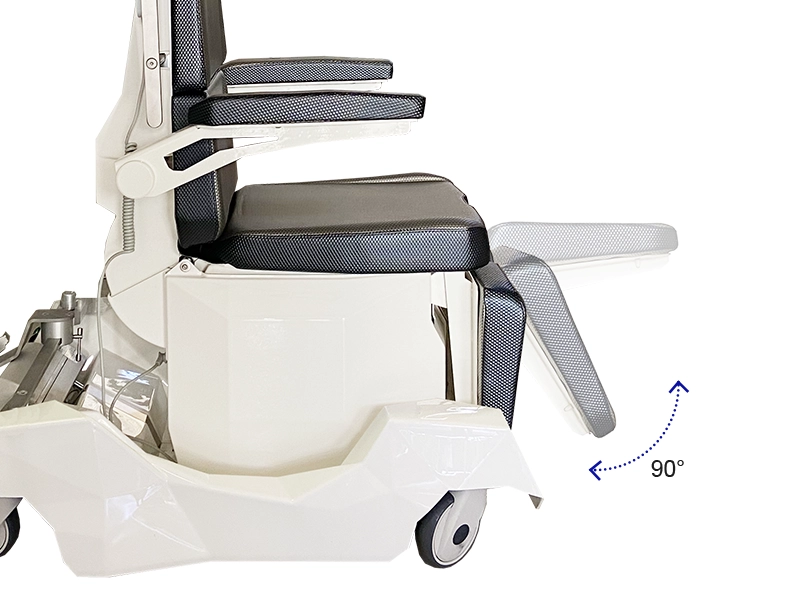

	Leg-rest operated with a multifunction foot control by with a linear actuator.

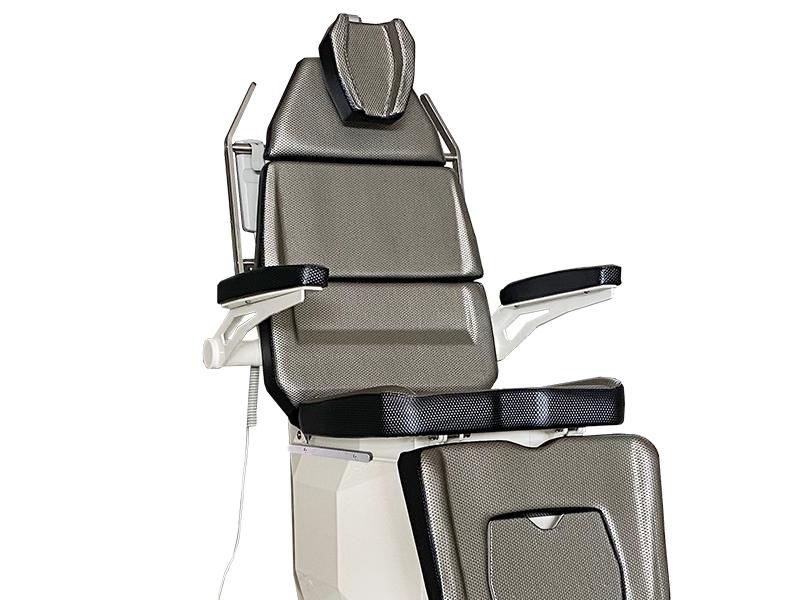

	Stainless steel side rails mounted on the back-rest. PROVIDED IN THE STANDARD VERSION Stainless steel side rails mounted on the SEAT. OPTIONAL
	EDGE O TECH is equipped with 4 wheels run by an electronic brake system. The wheels can be locked and released easily and ergonomically by means of the key buttons situated on the back of the Chair. A wheel with directional lock allows the Professional to move the Chair over long distances with ease. The motion sensor connected to the wheels allows the Chair to be automatically locked after 30 sec. of stop. EDGE O TECH is Equipped with a 5.0 Ah battery allowing it to operate the Chair autonomously, without connection to the power supply. The battery allows 200 movements of the Chair. The charge indicator on the battery allows monitoring the charge level. The battery recharges autonomously when the Chair is connected to the power supply. PROVIDED IN THE STANDARD VERSION
	– Total or directional lock (0/180°) – Housing and wheel centre glass fibre- reinforced polyamide – Wheel tread polyurethane 80 shore A, hydrolysis resistant – Ball bearing in swivel head and double row ball bearing in wheel – Wheel diameter 125 mm – Load capacity 150 kg PROVIDED IN THE STANDARD VERSION
	EDGE O TECH is provided in the standard version with the structure in White color or Silver at choice. PROVIDED IN THE STANDARD VERSION
	The upholstery comprises 5 separate padded sections fully detachable for easy cleaning and disinfection, made of high density undeformable foam and the cover is a bi-elastic, abrasionresistant, flame retardant and antimicrobial medical grade Skai available in over 80 different colours and textures. PROVIDED IN THE STANDARD VERSION
	EDGE O TECH is operated by a wireless foot control with modern design and extremely intuitive . Easy to operate and clean, the foot control provides the Professional with an ergonomic and efficient working tool, useful to position the Patient comfortably and memorize different working or safety positions. The foot control has 8 buttons to operate the 4 actuator and move the Chair sections ; it is also provided with 2 memorizable positions buttons (M1,M2), the easy Patient Access-Exit position (M0), and the Sync button that enables leg-rest and back-rest simultaneous movement. The foot control is also equipped with two buttons for the emergency positions of the Chair: the flat position and the Trendelenburg position. The pedal innovative visual and acoustic signals communicate all safety, memorized movements and charging activity of the chair and it’s foot control. PROVIDED IN THE STANDARD VERSION

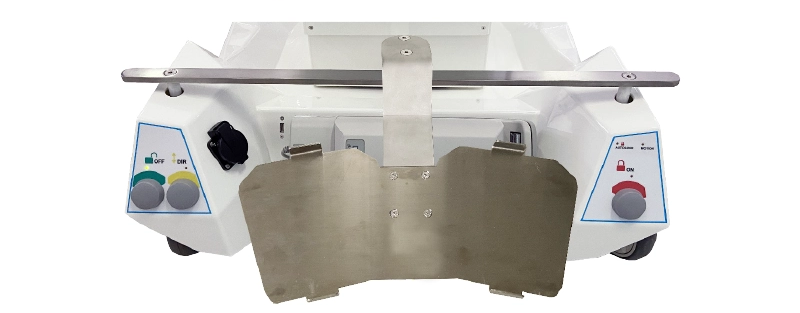

	Foot control support for back rail. PROVIDED IN THE STANDARD VERSION
