Description
EDGE EOM can be equipped with different accessories transforming the chair in the perfect working tool in Outpatient Surgery, Hair-Transplant FUT & FUE procedures, Bariatric and Surgical Podiatry, ENT, Dermatology and Cosmetic Surgery, Diagnostic, Ambulatory Surgery, General Examination and Minor Procedures.
EDGE EOM is conceived in a solid metal structure, painted with epossidic powder and operated with 3 silent linear actuators and one telescopic column by a multifunction foot control.

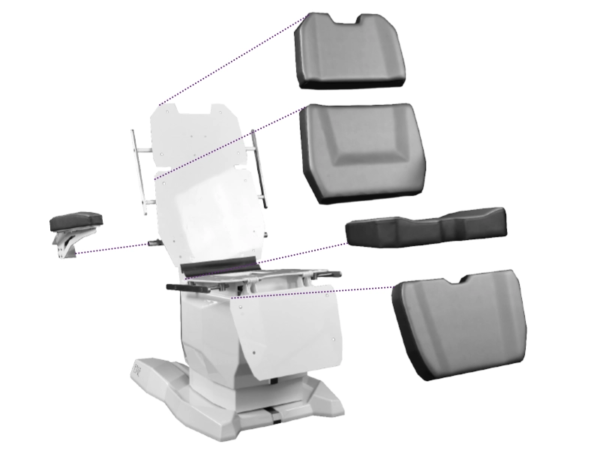

The upholstery comprises 4 separate padded sections fully detachable for easy cleaning and disinfection, made of high density undeformable foam and the cover is a bi-elastic, abrasion-resistant, flame retardant and antimicrobial medical grade Skai available in 80 different colours and textures.
![]() |
EDGE EOM chair reaches a minimum height of 48 cm allowing patients with different medical conditions to easily access the chair from the front or the sides without any barrier. |
![]() |
EDGE EOM can automatically reach the Operating Position thanks to the memorizable positions function activated by the foot control. |
![]() |
EDGE EOM is equipped with medical grade castors, two of them are pivoting while 2 fixed, and central brake system at rear, in order to provide maximum maneuverability. |
![]() |

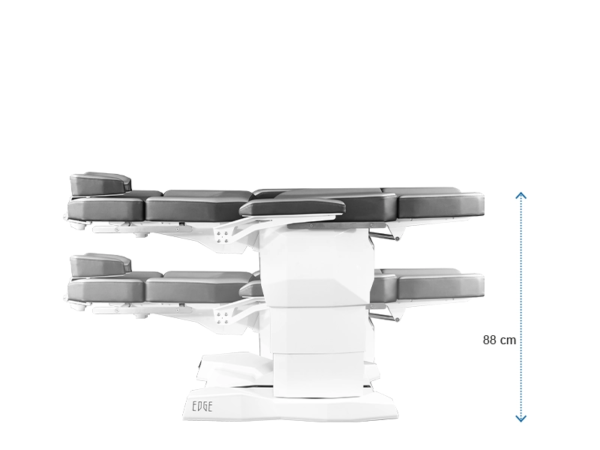

EDGE EOM chair can reach a perfect flat position at any height, for the maximum comfort of the Operator while performing a clinical examination or professional procedure. Maximum height 88 cm. |
![]() |
Zero position of the chair. EDGE EOM chair automatically reaches “0” position to facilitate the access and the exit of the Patient. |
![]() |
EDGE EOM allows the operator to perform “Synchro” movements of the Chair enables the combined and synchronized movement of the back-rest and leg-rest. |
![]() |
EDGE EOM can rely on a lifting capacity of 325 kg, one of the highest in its category. |
![]() |

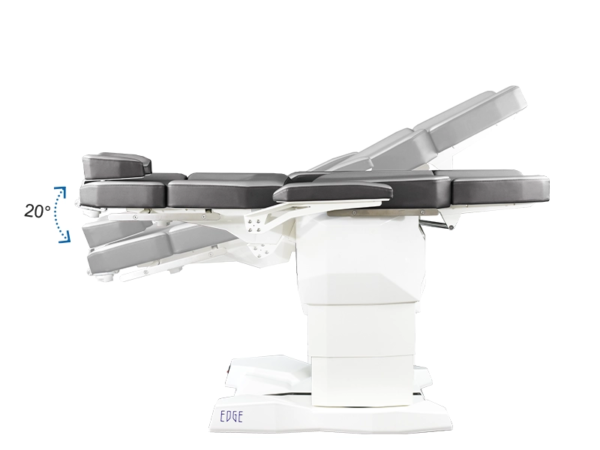

EDGE EOM reaches Trendelenburg position with 20° inclination. |
![]() |
Head-rest is shaped and padded according to the requirements of different medical sectors and can all be completely removed when necessary. |
![]() |
The articulated head-rests are adjustable in 3 directions, can be locked firmly when reaching the correct position of the Patient. PROVIDED IN THE STANDARD VERSION |
![]() |
The headrest can be positioned in line with the back-rest upholstery. The sliding rod of the headrest allows a height excursion of 30 cm. PROVIDED IN THE STANDARD VERSION |
![]() |
Arm-rest is shaped and padded according to the requirements of different medical sectors and can all be completely removed when necessary. PROVIDED IN THE STANDARD VERSION |
![]() |
Both padded arm-rest are independently collapsable, removable and mechanically combined with the seat\backrest movements ensuring comfort for the patient in any position. |
![]() |
Padded and shaped leg-rest. PROVIDED IN THE STANDARD VERSION |
![]() |
Leg-rest operated with a multifunction foot control by with a linear actuator. |
![]() |
2 Stainless steel side rails mounted on the seat. PROVIDED IN THE STANDARD VERSION |
![]() |
The upholstery comprises 4 separate padded sections fully detachable for easy cleaning and disinfection, made of high density undeformable foam and the cover is a bi-elastic, abrasionresistant, flame retardant and antimicrobial medical grade Skai available in over 80 different colours and textures. PROVIDED IN THE STANDARD VERSION |
![]() |
EDGE EOM is provided in the standard version with the structure in White color or Silver at choice. PROVIDED IN THE STANDARD VERSION |
![]() |
EDGE EOM is operated by a wireless foot control with modern design and extremely intuitive . Easy to operate and clean, the foot control provides the Professional with an ergonomic and efficient working tool, useful to position the Patient comfortably and memorize different working or safety positions. The foot control has 8 buttons to operate the 4 actuator and move the Chair sections ; it is also provided with 2 memorizable positions buttons (M1,M2), the easy Patient Access-Exit position (M0), and the Sync button that enables leg-rest and back-rest simultaneous movement. The foot control is also equipped with two buttons for the emergency positions of the Chair: the flat position and the Trendelenburg position. The pedal innovative visual and acoustic signals communicate all safety, memorized movements and charging activity of the chair and it’s foot control. PROVIDED IN THE STANDARD VERSION |
